Model USC2

Undersink Chilled & Ambient


Chilled

Still

Filtered
SKU: Model USC2 Category:

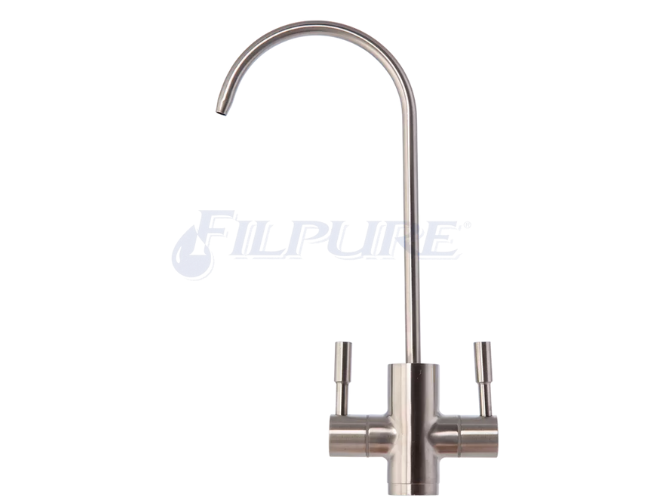

The USC2 appliance provides refreshing Chilled & ambient filtered water Dispenser. featuring long reach Dual slim line tap. Capacity 1-20 people, 20-40 people, 40-60 people.

Twin filtration system offers double protection & meets The WaterMark specification AS/NZS 3497:1998 Amdt 1 2001 Drinking water

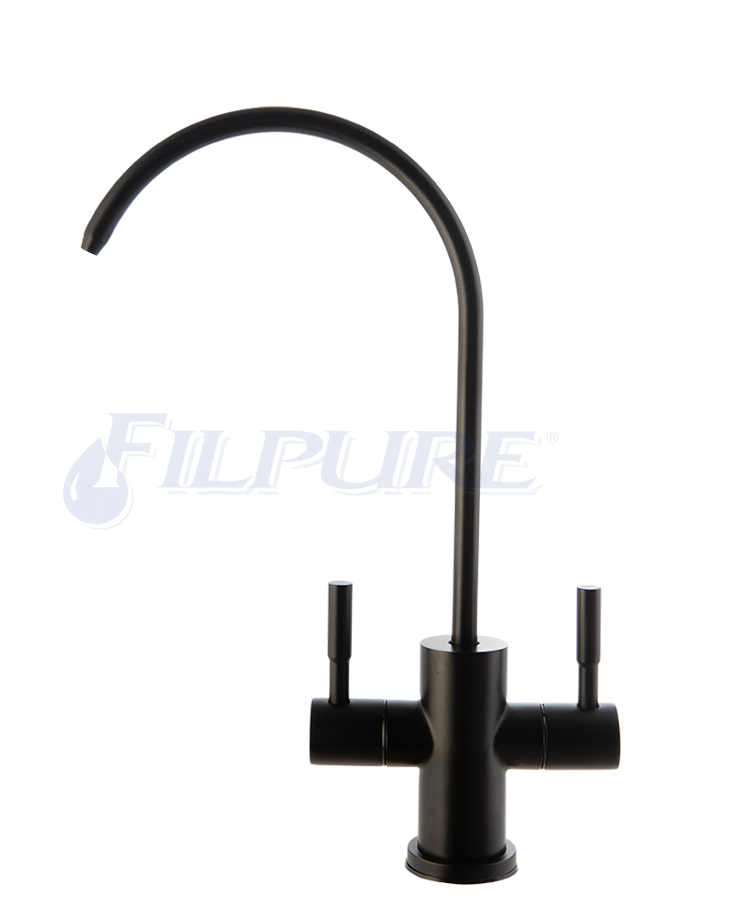

*Optional: Tap available in Matte Black color.

CHILLING & STORAGE TANK

Constructed of stainless steel, it has a volume of 1.9 Litres, is fully insulated and independently tested to withstand over 800psi of static pressure.
The internal waterlines are 1/4”OD stainless steel and are heliarc welded to eliminate corrosion.

Plumbing Connections:

Both the inlet and outlet are recessed, 1/4” stainless steel
pipes, suitable for connection to industry standard 1/4” fittings.
Electrical Connections:

The USC2 has a 1.5 metre GPO power cable
and plug. 240volts, 50Hz. Single phase. Running amps – 0.74A. Power consumption – 120W
(Cooling Capacity).
Cooling Performance:

The USC2 is capable of cooling approximately
8*LPH (litres per hour) at 10°C. Cooling Speed: From 27°C to 10°C, 21.6 minutes Cooling
Capacity: 8 litres/hour/10°C ± 2°C Draw Off Capacity: 8 cups below 10°C
NETT WEIGHT & DIMENSIONS

WEIGHT 12.5KG WIDTH 210mm DEPTH 410mm HEIGHT 290mm SHIPPING VOLUME 0.035 M2
PACKED WEIGHT & DIMENSIONS

WEIGHT 13.5KG WIDTH 230mm DEPTH 460mm HEIGHT 330mm SHIPPING VOLUME 0.035 M2
REFRIGERATION

This fan assisted, static condenser system utilises R134a refrigerant which is non toxic, non- flammable and non ozone depleting. Refrigerant flow is controlled by capillary tube, which has no moving parts. The compressor is protected by an automatic overload, is lifetime lubricated and hermetically sealed. The tube on tank style evaporator has six (6) windings around the storage tank for balanced, efficient cooling and the entire system is controlled by an adjustable, (factory pre-set), thermostat.
WARRANTY

The USC2 water coolers are covered by a 3 Year Comprehensive Warranty (copy available on request). The warranty provides comprehensive parts and labour coverage, for the period of 3 years from the date of original sale
