IBWR

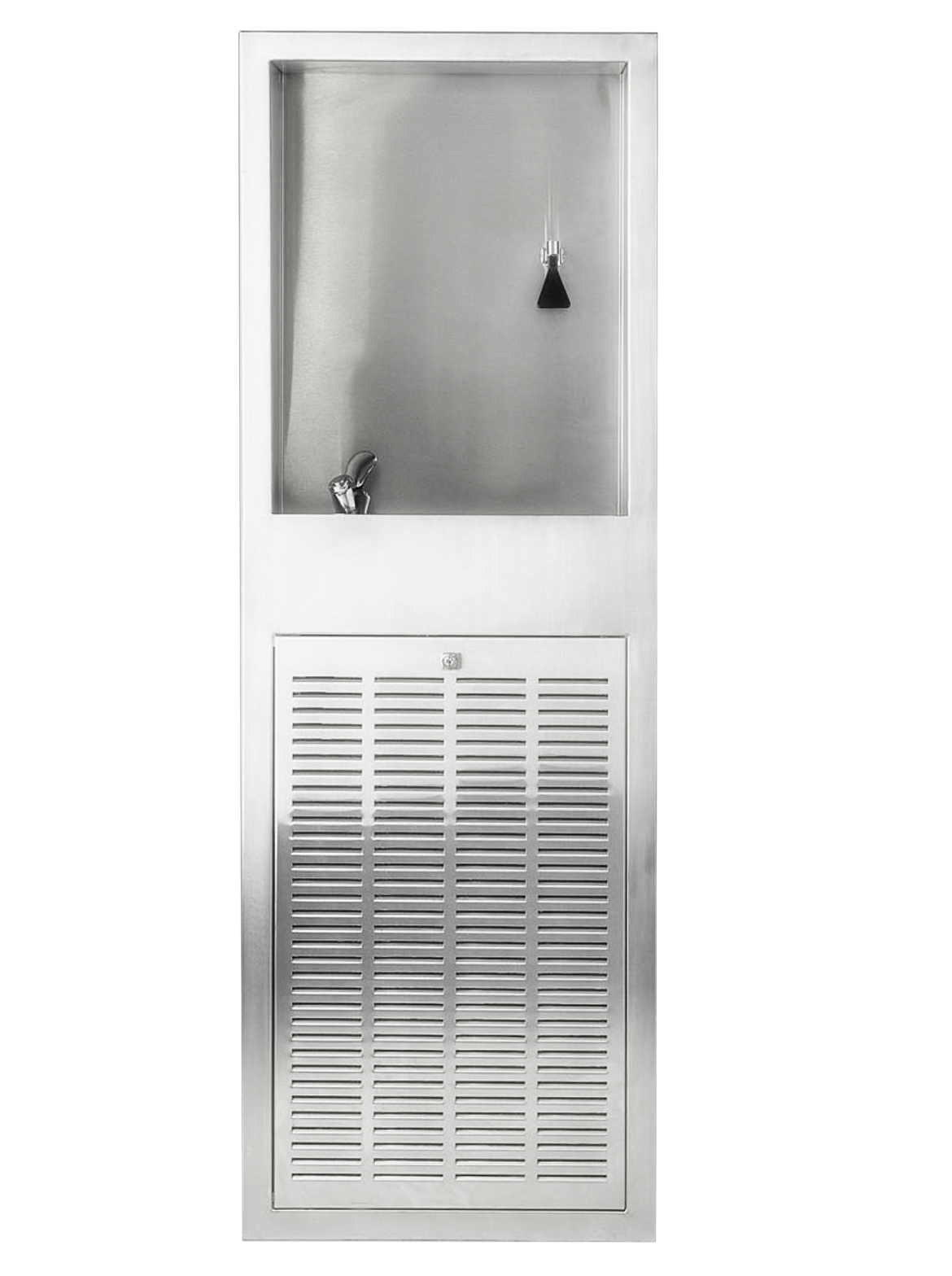

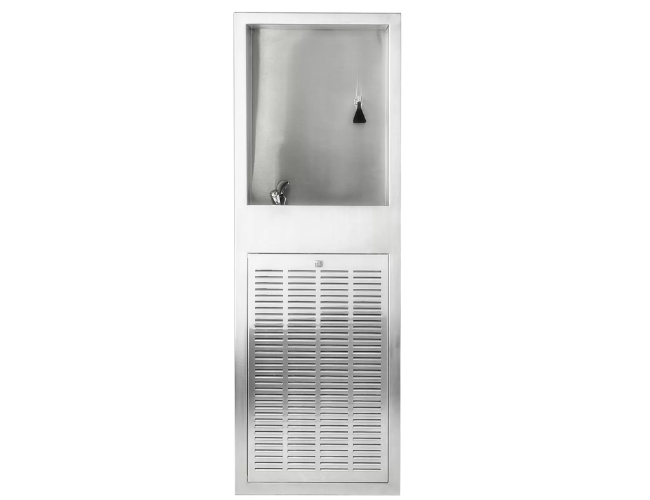

In-Built Wall Recessed Water Bubbler

SKU: IBWR Category:
  • Wall recessed all stainless steel Filtered chilled water system
  • Capacity 25 litres per hour
  • Space saving flush mounted
  • Lockable service door
  • Heavy duty water Dispensersystem
  • Non-drip bubbler
  • Stylish and unobtrusive unit
  • 0.5 Micron filter

The system will remove the following:

  • Lead
  • Chlorine
  • Taste & odour
  • Cryptosporidium
  • Giardia Cyst
  • Sediment
  • Ammonia
  • Rust & cloudiness
WATER RESERVOIR

The WR45 refrigeration unit has a 2 litre storage tank to cope with periods of peak demand. The tank is hard drawn copper, tin plated for your safety. The IBWR will provide a peak chilling capacity of 26 l.p.h

REFRIGERATION

The WR45 system uses 275gms of refrigeration R22 which is non- toxic, non flammable and environmentally sympathetic.

WATER FLOW CONTROL

The bubbler is rated to supply an adjustable flow of 1.7 l.p.m. at any mains pressure between 140 and 700KPa.

WATER CONNECTIONS

water inlet- 6.4mm (¼”) copper tube
drain- 4-mm MBSP

TEMPERATURE CONTROL

The thermostat is factory pre- set

COMPRESSOR

¼ hp capacity, 370 watts.
The compressor is hermetically sealed for silent running.

CONDENSER

The condenser is of copper tube and expanded aluminium finish

ELECTRICAL

The refrigeration unit is fitted with a 7.5 amp, 2 metre, 3 pin house cable. The full load current is 2.69 amps

Performance to ARI 1010- 94 standard
water inlet- 26.7℃
water outlet- 10℃
ambient air- 32.2℃

Weight- packed
54kgs

DIMENSIONS- PACKED

width- 600mm container capacity
depth- 300mm 20ft- 65 units
height- 1600mm 40ft- 137 units
